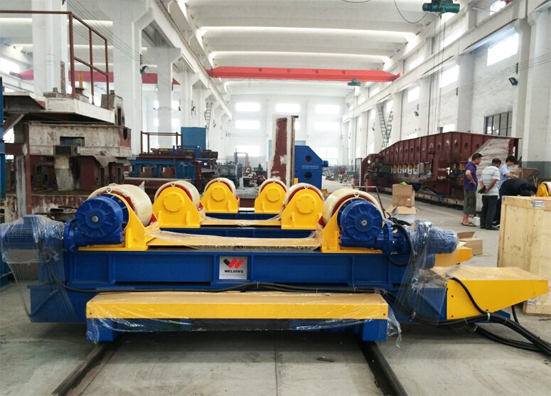

Conventional rotator
Main Features:
Conventional roller beds are a basic solution for the handling of a variety of workpieces, such as welding,polishing,glue-lining,and assenmling of the cylinder body.
Conventional rotator standard size is from 2T to 500T; beyond this range please contact us for further communication.
The adjustment of roller distance according to diameter is carried out by manual.
Rotation is even and certain, the whole welding process can be effectively automated.


Type

Max loading (kg)

Range of suitable work piece(mm)

Dia. and width of the wheel(mm)

roller linear velocity(m/h)

Power of motor(kw)

Adjustable mode for space

Way of setting

Rubber rollers

Metal rollers

HGK-2

2000

Φ200-1200

Φ200×100

2×Φ190×16

6-60

2×0.18

Manual screw adjustment or bolt shift

Variable frequency control



HGK-5

5000

Φ250-2300

Φ250×100

2×Φ240×20

6-60

2×0.37

HGK-10

10000

Φ300-2800

Φ300×120

2×Φ290×25

6-60

2×0.55

HGK-20

20000

Φ500-3500

Φ350×120

2×Φ340×35

6-60

2×1.1

HGK-40

40000

Φ600-4200

Φ400×120

2×Φ390×45

6-60

2×1.5

HGK-60

60000

Φ750-4800

Φ450×120

2×Φ440×60

6-60

2×2.2

Bolt shift

HGK-80

80000

Φ850-5000

Φ500×120

2×Φ490×70

6-60

2×3

HGK-100

100000

Φ1000-5500

Φ500×120

2×Φ490×80

6-60

2×4

HGK-150

150000

Φ1100-6000

/

Φ620×220

6-60

2×4

HGK-250

250000

Φ1100-7500

/

Φ660×260

6-60

2×5.5

HGK-400

400000

Φ1100-7500

/

Φ750×320

6-60

2×7.5

HGK-500

500000

Φ1100-7500

/

Φ750×400

6-60

2×11

For 2-100T roller is steel and rubber combination roller
For 100-500T roller is made of whole steel roller or imported rubber.
